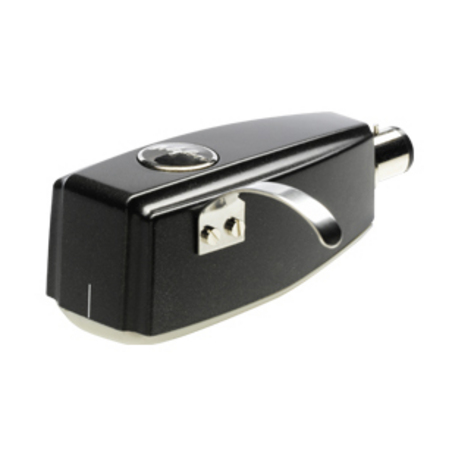

Ortofon SPU Classic G MkII

Ortofon SPU Classic G MkII

The SPU Classic G MKII, known for its dynamic and powerful sound reproduction, is a Moving Coil (MC) cartridge with an 18µm spherical stylus profile.

The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.

Special Order

This item is special order only and we can supply in approximately 3 weeks from order placement.

Techical data

Output voltage at 1000 Hz, 5cm/sec. 200 µV

Channel balance at 1 kHz < 1 dB

Channel separation at 1 kHz > 20 dB

Channel separation at 15 kHz > 10 dB

Frequency range at - 3dB 20-25.000 Hz

Frequency response 20-20.000 Hz ± 3 dB

Tracking ability at 315Hz at recommended tracking force *) > 65 µm

Compliance, dynamic, lateral 8 µm/mN

Stylus type Nude spherical

Stylus tip radius R 18 µm

Tracking force range 3,0-5,0 g (30-50 mN)

Tracking force, recommended 4,0 g (40 mN)

Tracking angle 20°

Internal impedance, DC resistance 6 Ohm

Recommended load impedance > 10 Ohm

Cartridge body material Grinded wood

Coilwire material High Purity Copper (OFC)

Cartridge colour Nickel/Black

Cartridge weight 32 g

*) Typical value
